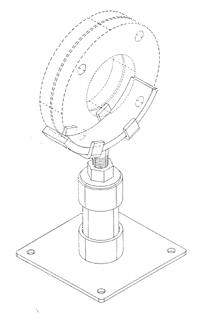

Standon Model S96 Flange Cradle Pipe Support
The "Standon" model #S96 Flange Cradle Pipe Support was designed for
use not only in new installations, but also as an economical replacement
on existing facilities. The innovative saddle design is radiused to fit snugly
under your assembled flange configurations. Centering tabs maintain position
during seismic activity, and are spaced to avoid bolt position conflict.
The Standon Flange Cradle Support comes with an oversized base and
an adjustable collar allowing up to 4" of fine adjustment.
- Accepts standard IPS pipe - No threading required.
- Comes complete with over-sized anchor able base plate.
- Available in sizes 2" through 24".
- Manufactured to fit CL 125 Flanges.
- Also available in 100% 304 Stainless Steel.
| MATERIAL | |
| Flange Cradle: | ASTM A36 |
| Collar/ Base Cups: | ASTM A53 D.O.M. tubing |
| Threaded Stud: | ASTM A36; rolled thread Grade ASTM A307 |
| Base Plate: | ASTM A36 Sheet Steel - .25" plate |
| Optional Material: | 100% 304 Stainless Steel |
| FABRICATION | |
| All welds: | 100% MIG welding, electrode E70XX |
| Cradle: | Radiused to CL 125 flange diameter, 120° coverage. (not designed for Sch. 80 PVC flanges) |
| FINISH | |
| All pipe supports have a corrosion resistant, galvanized finish. | |
DIMENSIONS
|
FLANGE CL 125 |
CRADLE MATERIAL | THREAD STUD | BASE PLATE | EXTENSION PIPE REQ'D | MINIMUM DIST. TO FLOOR |
| 2" | 3/8" x 1½" | 1" x 6" | 4"x6"x¼" | 2" SCH. 40 | 7" |
| 2½" | 3/8" x 1½" | 1" x 6" | 4"x6"x¼" | 2" SCH. 40 | 7" |
| 3" | 3/8" x 1½" | 1" x 6" | 4"x6"x¼" | 2" SCH. 40 | 7" |
| 4" | ½" x 2" | 1" x 6" | 8"x8"x¼" | 2" SCH. 40 | 7" |
| 6" | ½" x 2" | 1" x 6" | 8"x8"x¼" | 2" SCH. 40 | 7" |
| 8" | ½" x 2½" | 1" x 6" | 8"x8"x¼" | 2" SCH. 40 | 7" |
| 10" | ½" x 2½" | 1" x 6" | 8"x8"x¼" | 2" SCH. 40 | 7" |
| 12" | ½" x 2½" | 1" x 6" | 8"x8"x¼" | 2" SCH. 40 | 7" |
| 14" | 5/8" x 3" | 1½" x 6" | 8"x8"x½" | 3" SCH. 40 | 9½" |
| 16" | 5/8" x 3" | 1½" x 6" | 8"x8"x½" | 3" SCH. 40 | 9½" |
| 18" | ¾" x 3½" | 2" x 6" | 8"x8"x½" | 4" SCH. 40 | 10" |
| 20" | ¾" x 3½" | 2" x 6" | 8"x8"x½" | 4" SCH. 40 | 10" |
| 24" | ¾" x 4" | 2" x 6" | 8"x8"x½" | 4" SCH. 40 | 10" |
